In the world of measurement science, the second is more than just a unit of time; It's the foundation of nearly every other standard. From defining the meter, to calibrating voltages and ensuring traceability in industrial systems, the precise measurement of time affects nearly every corner of metrology. This article explores how modern timekeeping — anchored by atomic clocks — has shaped and continues to influence the evolution of global measurement standards.

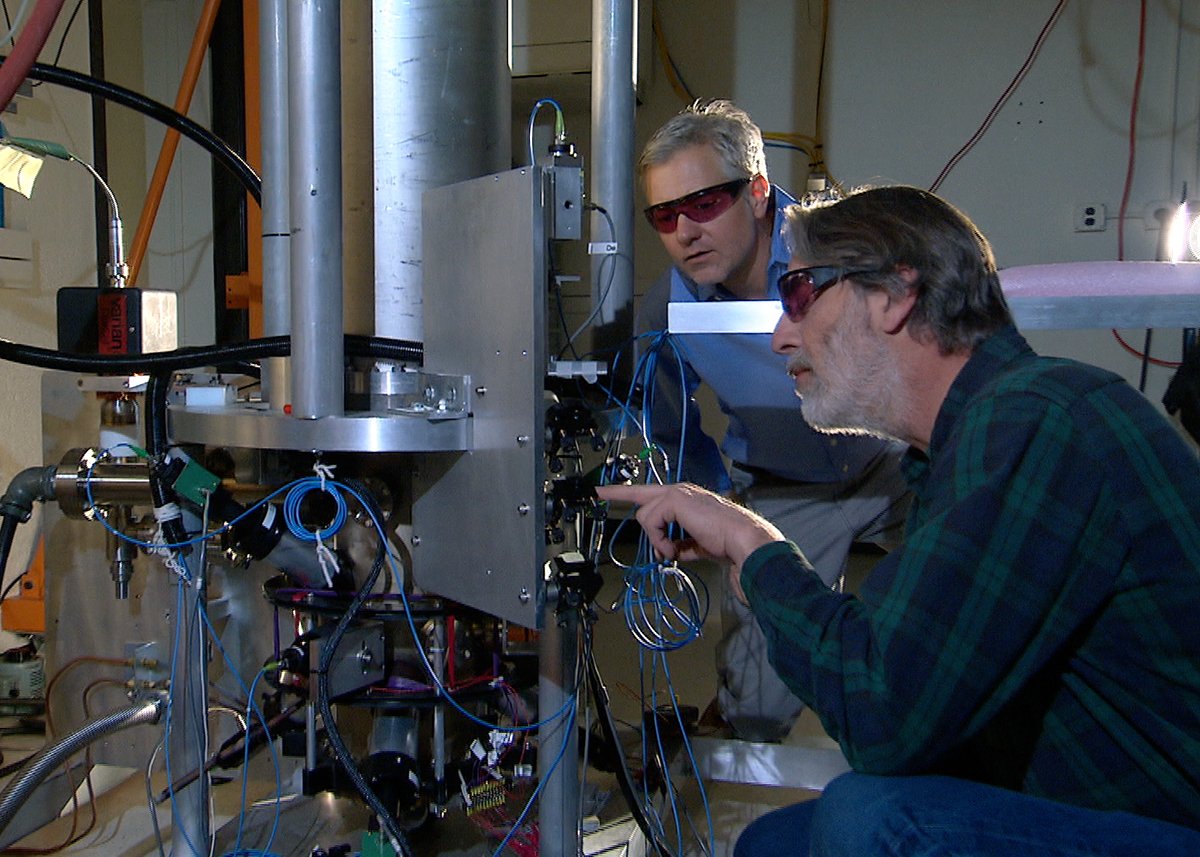

The NIST-F2 cesium fountain atomic clock is a civilian time standard for the United States. Credit: NIST
A Brief History of the Second
For much of history, timekeeping relied on astronomical phenomena. Ancient civilizations used sundials and stars, while pendulum and quartz clocks ruled the mechanical era. Yet, while important, they were inherently inaccurate. Factors such as gravity and temperature may interfere with some timekeeping systems, resulting in long-term instability.
In the mid-20th century, timekeeping fundamentally changed. The 1949 debut of the world’s first atomic clock at the U.S. National Bureau of Standards (now NIST) marked the dawn of a new era. This initial clock used an ammonia molecule, but it was the cesium-133 atom that transformed timekeeping. In 1955, the UK’s National Physical Laboratory (NPL) built the first practical cesium atomic clock, and by 1967, the international scientific community redefined the SI second with it as the basis:
“The second is the duration of 9,192,631,770 periods of radiation corresponding to the transition between two hyperfine levels of the ground state of the cesium-133 atom.”
This redefinition decoupled time from Earth’s motion and aligned it with an atomic constant, setting the stage for a precision revolution in measurement science.
The Atomic Clock as Metrology’s Heartbeat
An atomic clock functions by locking a quartz or microwave oscillator to the precise frequency of radiation emitted by atoms — in most cases, cesium. That frequency is the clock’s heartbeat. Today’s best cesium fountain clocks, such as NIST-F2 and PTB’s CSF-2, can maintain accuracy within a few parts in 10¹⁶, which is equivalent to gaining or losing less than one second every 100 million years.
While cesium remains the standard for defining the second, research in optical clocks based on atoms like strontium or ytterbium has further advanced performance. These systems operate at much higher frequencies (in the hundreds of terahertz), producing even finer resolution. NIST, NPL, INRIM, and NICT have all developed optical clock standards with uncertainties below 1 part in 10¹⁷. The metrology community is already preparing to redefine the second based on these highly precise timekeeping machines.
Why Time Defines More Than Just Time
Modern metrology uses the second not only to measure time, but to define other units too. The meter, for example, is defined by the distance light travels in 1⁄299,792,458 of a second. Using the fixed speed of light (c) to define the second with extreme precision allows us to define length in terms of time. This facilitates the use of technologies like laser interferometry and time-of-flight measurements.
Similarly, electrical units are linked to time. Voltage standards rely on the Josephson effect, which converts frequency into voltage. The ampere is now defined by fixing the elementary charge and measuring the rate of charge flow per second. In other words, precise timekeeping is woven through the entire SI system, tying frequency, distance, charge, and energy together with a single atomic pulse.
Synchronization and Traceability in Practice
For metrologists, traceability is the name of the game, and time synchronization is its lifeblood. High-accuracy measurements require that instruments and systems operate on a shared, stable time base. In a calibration lab, that might mean distributing a 10 MHz frequency reference or 1 PPS (pulse-per-second) signal to all systems from a local atomic clock. In field systems, such as electrical substations or radio networks, it often means syncing via GPS or another GNSS.
That synchronization depends on global time scales. The BIPM maintains International Atomic Time (TAI), a weighted average of roughly 450 atomic clocks from over 80 national laboratories. From TAI, Coordinated Universal Time (UTC) is derived by inserting occasional leap seconds to stay in sync with the Earth's rotation. Most national labs maintain local realizations of UTC, such as UTC (NIST) or UTC (PTB), which serve as reference time sources for their respective countries.
These time scales ensure that calibrations performed in one part of the world are consistent with those in another. If you're calibrating a frequency counter or certifying a timing receiver, the ability to trace is ultimately connected to the SI second through this international infrastructure.
Industrial and Scientific Impact
Metrology-grade timekeeping supports many real-world applications:
- Telecommunications: Mobile networks, data centers, and financial markets depend on precise timestamps to avoid conflicts and ensure auditability. A timing offset of just microseconds can cause data collisions or transaction failures.
- Electric Power Grids: High-voltage networks use synchronized measurements to monitor phase angles and react to disturbances. Precision timing enables wide-area monitoring systems that keep modern grids stable and efficient.
- Navigation: GNSS systems like GPS rely on on-board atomic clocks to broadcast time signals. Your position is calculated by measuring the time signals take to reach you, making accuracy critical. A 1-nanosecond error translates to about 30 centimeters of location error.
- Manufacturing: In semiconductor fabs, robotics, and automated production lines, synchronized control systems enable tight process tolerances. Timing mismatches can lead to errors, waste, or even safety issues.
- Research and Exploration: Scientific experiments like particle physics and radio astronomy depend on ultrastable timing. Experiments like Very Long Baseline Interferometry (VLBI) compare data from observatories thousands of kilometers apart, relying on atomic clocks to maintain phase coherence.
Global Institutions Driving Time Metrology
Today’s global timekeeping ecosystem is upheld by a handful of leading institutions:
- NIST (USA): Developer of the first atomic clock and ongoing leader in optical clock research and dissemination.
- NPL (UK): Builder of the world’s first operational cesium clock and a pioneer in quantum timekeeping.
- PTB (Germany): Operator of DCF77 (Europe’s radio time signal) and leading developer of transportable optical clocks.
- INRIM (Italy): Cutting-edge optical clock research and long-distance time transfer experiments.
- NICT (Japan): Advanced optical clocks and time dissemination infrastructure in Asia.
- BIPM (France): Maintains TAI/UTC and coordinates global comparisons among time labs.
These institutions not only maintain the world's official clocks — they progress the science of time.
What It Means for Metrologists
For calibration professionals, time is both a tool and a constraint. Whether you're testing instruments, certifying lab gear, or setting up traceability chains, a trusted, stable reference to the SI second is fundamental. The better your time reference, the better your uncertainty budget.
Atomic timekeeping isn't just an academic pursuit; It’s what lets your oscilloscope, spectrum analyzer, GNSS receiver, or timing-critical application operate with confidence. And as optical clocks approach routine operation, the future promises tighter synchronization and lower uncertainty across all domains of measurement.
In short: time defines modern metrology. And as we inch closer to redefining the second once again, it’s clear that the clock is ticking toward greater precision.
