Fluke RotAlign Elite

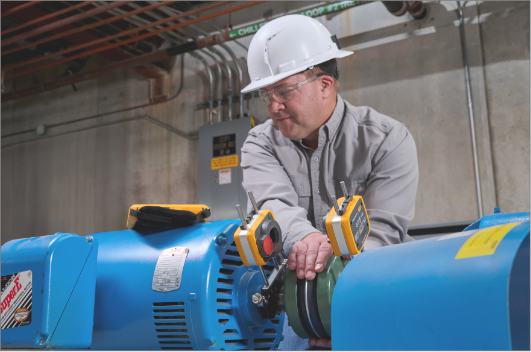

Real-time alignment insight

Simultaneous Live Move shows both horizontal and vertical corrections, so adjustments remain precise throughout the entire process.

• Align angular and parallel coupling values and machine feet positions update in real time
• Confirm corrections before and during final tightening
• Cut time lost to repeated measurements and correction checks

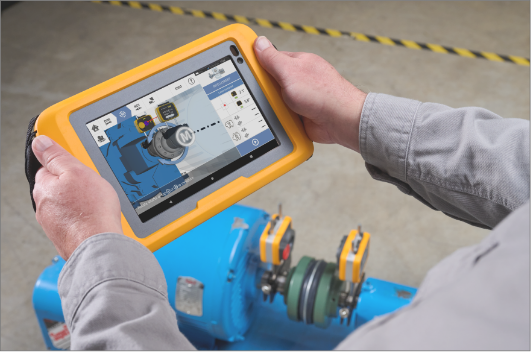

Reliable readings in real conditions

Soft Foot detection reveals base or frame distortion before you start aligning, and range alerts call out unstable readings during rotation. These safeguards keep every measurement stable and trustworthy from setup to final verification.

• Detect and remove initial base or frame distortion
• Quality Factor and Standard Deviation confirm measurement stability and precision
• Prevent invalid readings from first measurement to final adjustment

Accuracy across complex setups

An adjustable laser and extended detector range support long shafts, spacer couplings, Cardan shafts, and multi-coupling machine trains.

• Maintain shaft alignment precision with limited rotation
• Handle large offset and extended length couplings
• Consistent accuracy on large assets

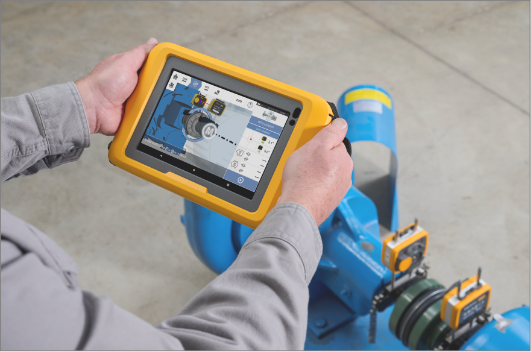

Quick review, no repetition

Edit measurement points capability enables technicians to review and disenable erroneous points without having to repeat coupling measurement rotation.

• Instantly validate measurement data
• Identity and disenable erroneous measurement points
• Stay on track without redoing the measurement

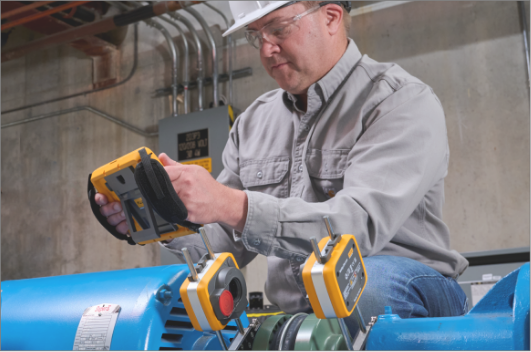

Consistent accuracy at any rotation

Continuous Sweep, MultiPoint, and Pass Mode maintain measurement accuracy whether shafts can rotate fully or only partially.

• Precise and reliable measurement with limited accessibility
• Continuous data even in confined setups
• Highly repeatable results every time

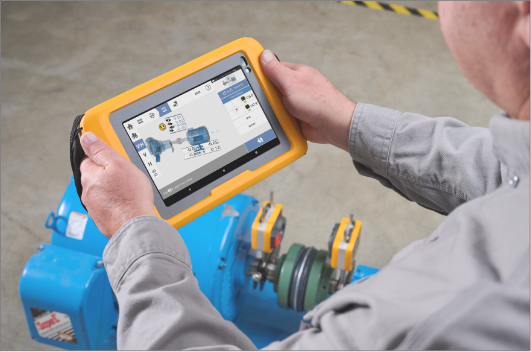

Confidence backed by metrics

Quality Factor and Standard Deviation quantify repeatability, verifying every result before it is saved.

• Data integrity confirmed in real time
• Less rechecks required
• Confidence across teams and sites

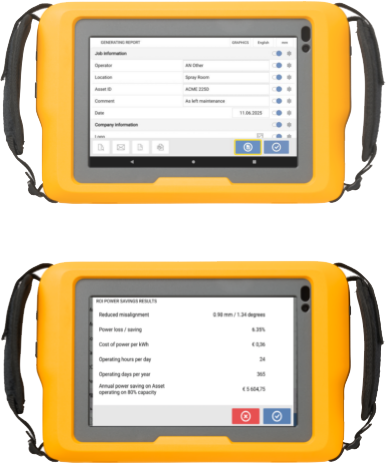

Prove ROI instantly

The built-in ROI calculator quantifies the financial value of every alignment. By tracking reduced power loss, extended equipment life, and improved energy efficiency, teams can see measurable savings right on the tablet.

• Realize savings in real time - Get instant cost and energy feedback after alignment.
• Show the value of precision - Link better alignment to lower maintenance costs.
• Support smarter decisions - Use quantified results to justify service or equipment investment.

RotAlign Elite adds verification tools that confirm alignment accuracy before the job is complete.
